Square Bale Accumulator For 15 Bales on Edge
The original size developed by Norden, the E15 bale system for 15 bales on edge is popular with operators wanting to maximize the efficiency of their loaders. Three bales across the 8.5-foot wagon fill it completely and the loader doesn’t need to be as big as it does for the 18-bale system. We recommend this size for farms producing between 15,000 and 30,000 bales per year.
The E15 Accumulator System
- Bales arranged on edge, 5 bales wide/3 bales long
- Handles bales from 32” to 40” in length
- The bale group size is 75″ wide and 96′-120″ long
- 15-bale group offers a 33% time-saving advantage in comparison to a 10-bale group, with each grab from the AE15 containing 50% more bales, and with a 33% reduction in the number of packs
- Bale arrangement allows a 9’ x 20’ wagon to be completely filled
Twisted Chute
The twisted chute turns each bale onto its side, while the baler provides the force needed to push the bales to the top of the chute.
Stainless Steel Deck
The stainless steel deck provides a better surface for the bales to slide in higher dirt and moisture conditions.
Gravity Driven Gates and Final Bale Lever
As gravity moves the bales downward, the last bale in each row swings a gate to open the next row. The last bale in the grab opens the back gate.
Automatic Lift Gate
The last bale in the grab opens the back gate. As the accumulator unloads itself, springs automatically return all the gates back to their starting position, and the rear gate snaps back shut, ready for the next bale.
Guide Belting
Sharp turns are no problem as the guide belt keeps bales properly aligned and moving up the chute.
Bale Configuration
5 Bales Wide and 3 Bales Long
Group Dimensions
72” Wide and 96” to 120” Long
Approximate Weight
2,480 lbs.
Working Height
11 ft. 1 in.
Working Length
21 ft. 5 in.
Working Width
7 ft. 10 in.
Bale HAndlers
For the E15 Accumulator System
615 Grabber
- For moving and grabbing 15-bale bundles.
- 15-bale grouping offers a 33% time-saving advantage in comparison to a 10-bale grouping, with each grab containing 50% more bales, and with a 33% reduction in the number of bundles.
- Bundle arrangement completely fills a 9’ by 20’ wagon.
- Requires a loader with at least 1,900lb lift capacity and one set of remotes.
Steel Tube frame
This quality steel frame ensures high strength and durability.
Cast steel bale hooks
Once the group is tight, a single hydraulic cylinder rotates all the hooks simultaneously into the top of the bales to pick up the group. These durable hooks allow for 2 hooks per bale to ensure the bundle is secure while transporting bundles.
Adjustable Crowd Bar
The Standard Grabber features an adjustable crowd bar that is mounted on the side of the grabber. When approaching a group of bales, the adjustable crowd bar works in combination with the back frame to crowd the bale group together.
Detailed Specs
Bale Configuration
5 Bales Wide and 3 Bales Long
Bundle Dimensions
72” Wide and 96” to 108” Long
Required Loader Capacity
1,900 lbs.
Working Height
1 ft. 1 in.
Working Length
7 ft. 11 in.
Working Width
6 ft. 0 in.
Approximate Weight
780 lbs.

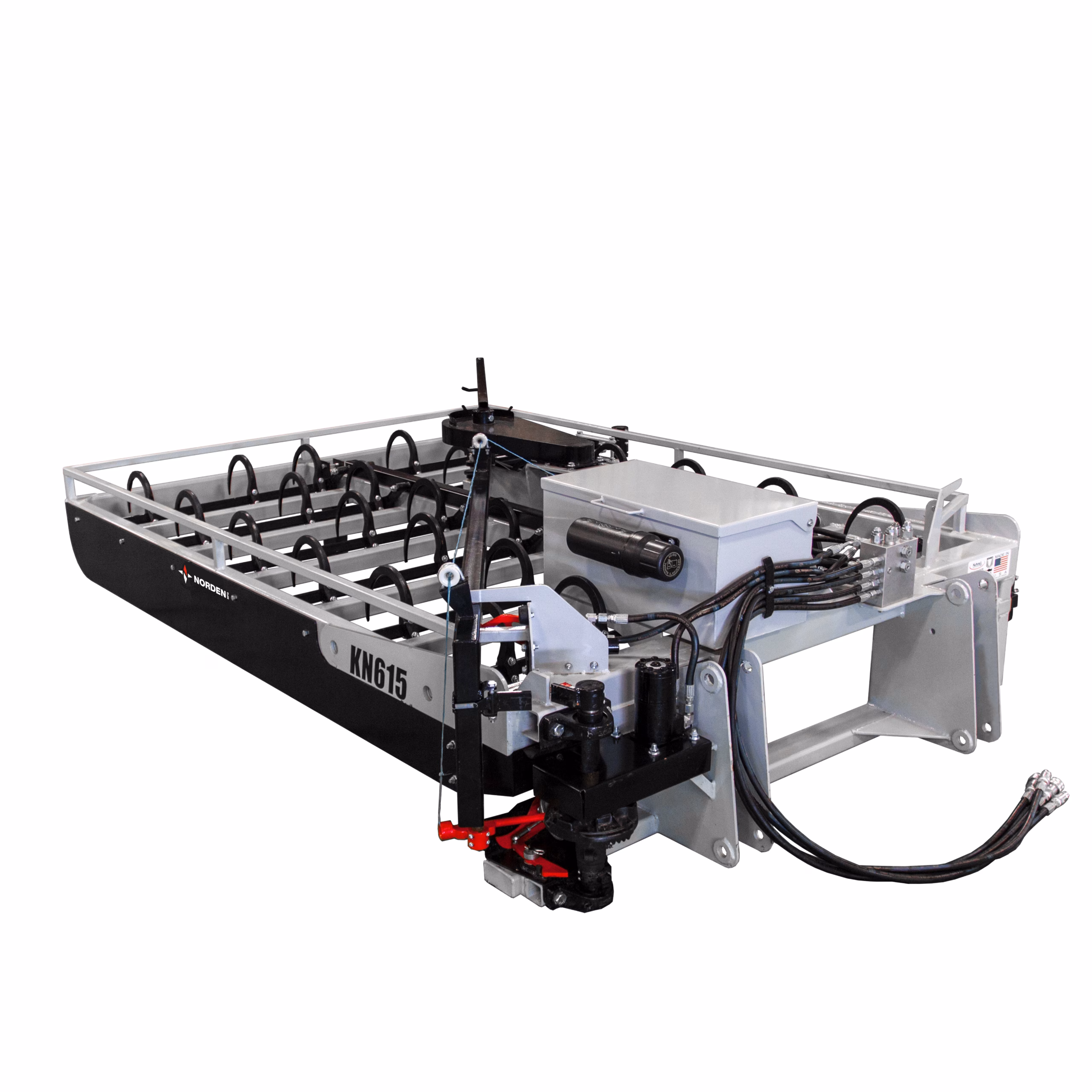

KN615 Tie-Grabber
- The KN615 Tie-Grabber picks up and ties bales that are arranged by the AE15 bale accumulator. Three long, five wide, on edge.
- This model’s 15-bale arrangement offers a 33% time-saving advantage in comparison to a 10-bale option, with each grab containing 50% more bales and with a 33% reduction in the number of bundles.
- Configuration completely fills a 9’ by 20’ wagon.
- Requires a loader with at least 2,400lb lift capacity, and one set of remotes with an optional splitter or two sets of remotes without a splitter.
Knotter
This highly reliable Rasspe Knotter allows for a consistent tying method.
Squeeze Arm
Once the machine is aligned with the bale bundle, the Squeeze Arm applies pressure and squeezes the bales tightly together to form a strong and compact bundle. This arm is important for creating a bundle that is easy to stack, move, and load.
Loader Mount
This customizable option allows you the flexibility to move between multiple loader hookups.
Twine Arm
When hydraulically engaged, the twine arm wraps twine around the bundle of bales to hold the bundle together.
Multiple Hose Options
This machine allows you to choose two hydraulic hoses with a wire control in the cab, or a four hydraulic hose option. This customizable feature allows you to choose the best option for your operation.
Detailed Specs
Bale Configuration
5 Bales Wide and 3 Bales Long
Bundle Dimensions
72” Wide by 96” to 108” Long
Required Loader Capacity
2,400 lbs.
Working Height
2 ft. 6 in.
Working Length
7 ft. 11 in.
Working Width
6 ft. 0 in.
Approximate Weight
1,480 lbs.
Sq102 Bale Squeeze
- Picks up tied bundles that are 4, 5, or 6 bales wide and 3 bales long.
- Inside length of 101 inches.
- For maximum efficiency, it is recommended to pick up as many bales as the loader can safely handle.
- Has a maximum lifting capacity of 4000 pounds.
- Weighs 1,060 pounds without the loader bracket.
- Works with E18, E15, F15, and F12 bale packs.
STRONG WHERE NEEDED
Designed and built with precision, this squeeze maximizes lifting capacity while providing the necessary strength. Developed in collaboration with the experts at Clerf, upgrade your operation and experience effortless bale handling today.
MOVE MANY BALES IN A SHORT ORDER
Moving multiple tied layers of bales in a single move will save you the maximum amount of time. Capable of handling up to 4,000 lbs., this squeeze allows you to move up to eighty, 50 lb. bales at once, streamlining your operations and increasing productivity. The only question is if your loader can take it.
YOUR LOADER, YOUR BALE SQUEEZE
Whether it is your skid steer, telehandler, or forklift we likely already have the ability to attach to it. We have the technology to make it happen.
Detailed Specs
Shipping Dimensions
107” L x 74” W x 29” H
Working Dimensions
101” L x 67.5-103.5” W x 29” H
Approximate Weight
1,060 lbs.
Group Size
72-90” W x 101-108” L
Maximum Lifting Capacity
4,000 lbs.
Bale Packs
F12, F15, E15 and E18
