Square Bale Accumulator for 18 Bales on Edge
For maximum efficiency, group 18 bales. The E18 bale group with 18 bales on edge is popular with the largest acreage farms. This group fits into van trailers very nicely and makes the most of every move. Also filling an 8.5-foot wide wagon or trailer from side to side makes hauling bales to the shed the most efficient. We recommend the E18 bale handling system to farmers that produce 20,000 to 100,000+ bales per year.
The E18 Accumulator System
- Bales arranged on edge, 6 bales wide/3 bales long
- Largest and most efficient accumulator from Norden Mfg
- Handles bales from 32” to 40” in length
- The bale group size is 90” wide and 96” to 120” long
- 18-bale group offers a 44% time-saving advantage in comparison to a 10-bale group, with each grab from the AE18 containing 80% more bales, and with a 44% reduction in the number of packs
- AE18 is ideal for filling van trailers from the rear
- Bale arrangement allows a 9’ x 24’ wagon to be completely filled
Twisted Chute
The twisted chute turns each bale onto its edge, while the baler provides the force needed to push the bales to the top of the chute.
Stainless Steel Deck
The stainless steel deck provides a better surface for the bales to slide in higher dirt and moisture conditions.
Gravity-Driven Gates and Final Bale Trip
As gravity moves the bales downward, the last bale in each row swings a gate to open the next row. The last bale in the grab opens the back gate.
Automatic Rear Gate
The last bale in the grab opens the back gate. As the accumulator unloads itself, springs automatically return all the gates back to their starting position, and the rear gate snaps back shut, ready for the next bale.
Cornering Guide Belt
Sharp turns are no problem as the guide belt keeps bales properly aligned and moving up the chute.
Bale Configuration
6 Bales Wide and 3 Bales Long
Group Dimensions
90” Wide by 96” to 120” Long
Approximate Weight
3,030 lbs.
Working Height
12 ft. 7 in.
Working Length
24 ft. 7 in.
Working Width
9 ft. 4 in.
Bale Handlers
For the e18 Accumulator System

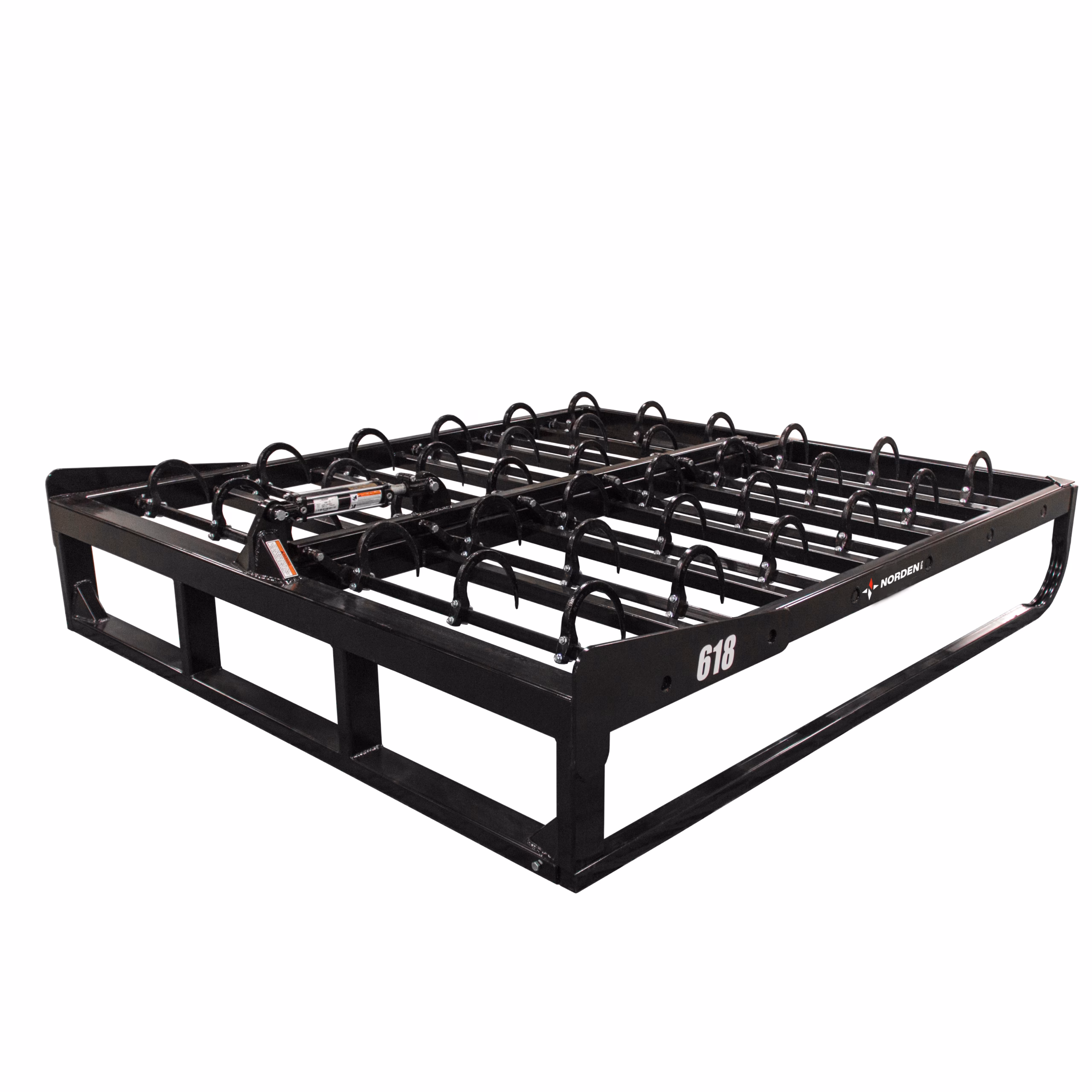

618 Grabber
- For moving and grabbing 18-bale bundles
- 18-bale grouping offers a 17% time-saving advantage in comparison to a 15-bale grouping, with each grab containing 20% more bales, and with a 17% reduction in the number of bundles
- Bundle arrangement ideal for filling van trailers from the rear and for filling 9’ by 24’ wagons
- Requires a loader with at least 2,200lb lift capacity and one set of remotes
Steel Tube frame
This quality steel frame ensures high strength and durability.
Cast steel bale hooks
Once the group is tight, a single hydraulic cylinder rotates all the hooks simultaneously into the top of the bales to pick up the group. These durable hooks allow for 2 hooks per bale to ensure the bundle is secure while transporting bundles.
Adjustable Crowd Bar
The Standard Grabber features an adjustable crowd bar that is mounted on the side of the grabber. When approaching a group of bales, the adjustable crowd bar works in combination with the back frame to crowd the bale group together.
Detailed Specs
Bale Configuration
6 Bales Wide and 3 Bales Long
Bundle Dimensions
90” Wide by 96” to 108” Long
Required Loader Capacity
2,200 lbs.
Working Height
1 ft. 1 in.
Working Length
7 ft. 11 in.
Working Width
7 ft. 3.5 in.
Approximate Weight
840 lbs.

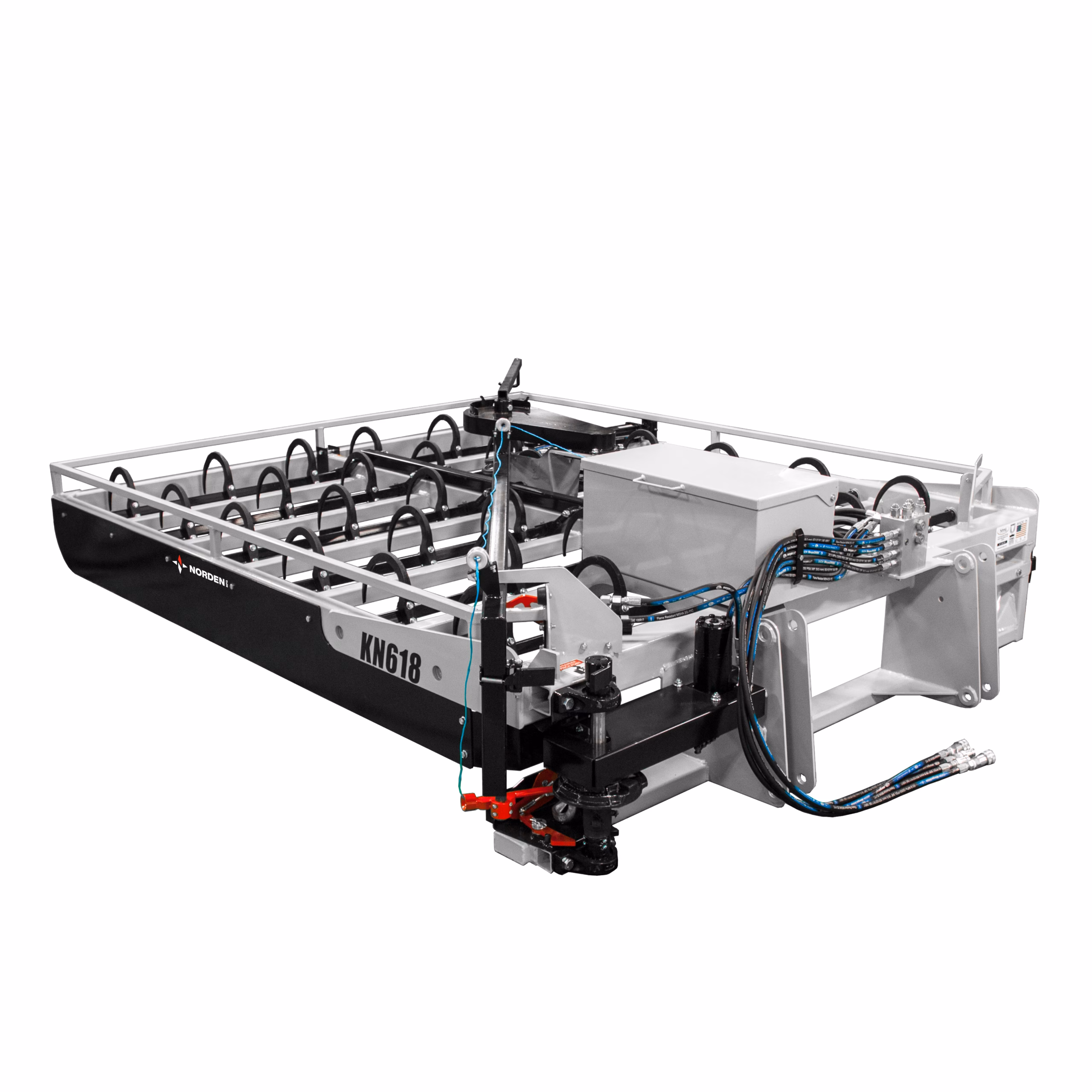

KN618 Tie-Grabber
- The KN618 Tie-Grabber picks up and ties bales that are arranged by the AE18 bale accumulator. Three long, six wide, on edge.
- The 18-bale arrangement offers a 17% time-saving advantage in comparison to a 15-bale option, with each grab containing 20% more bales and with a 17% reduction in the number of bundles
- Bundle arrangement ideal for filling van trailers from the rear and for filling 9’ by 24’ wagons
- Heavy-duty bale grapple.
- Requires a loader with at least 2,600lb lift capacity, see details for hydraulic requirements
Knotter
This highly reliable Rasspe Knotter allows for a consistent tying method.
Squeeze Arm
Once the machine is aligned with the bale bundle, the Squeeze Arm applies pressure and squeezes the bales tightly together to form a strong and compact bundle. This arm is important for creating a bundle that is easy to stack, move, and load.
Loader Mount
This customizable option allows you the flexibility to move between multiple loader hookups.
Twine Arm
When hydraulically engaged, the twine arm wraps twine around the bundle of bales to hold the bundle together.
Multiple Hose Options
This machine allows you to choose two hydraulic hoses with a wire control in the cab, or a four hydraulic hose option. This customizable feature allows you to choose the best option for your operation.
Detailed Specs
Bale Configuration
6 Bales Wide and 3 Bales Long
Bundle Dimensions
90” Wide by 96” to 108” Long
Required Loader Capacity
2,600 lbs.
Working Height
2 ft. 6 in.
Working Length
7 ft. 11 in.
Working Width
7 ft. 3.5 in.
Approximate Weight
1,540 lbs.
Sq102 Bale Squeeze
- Picks up tied bundles that are 4, 5, or 6 bales wide and 3 bales long.
- Inside length of 101 inches.
- For maximum efficiency, it is recommended to pick up as many bales as the loader can safely handle.
- Has a maximum lifting capacity of 4000 pounds.
- Weighs 1,060 pounds without the loader bracket.
- Works with E18, E15, F15, and F12 bale packs.
STRONG WHERE NEEDED
Designed and built with precision, this squeeze maximizes lifting capacity while providing the necessary strength. Developed in collaboration with the experts at Clerf, upgrade your operation and experience effortless bale handling today.
MOVE MANY BALES IN A SHORT ORDER
Moving multiple tied layers of bales in a single move will save you the maximum amount of time. Capable of handling up to 4,000 lbs., this squeeze allows you to move up to eighty, 50 lb. bales at once, streamlining your operations and increasing productivity. The only question is if your loader can take it.
YOUR LOADER, YOUR BALE SQUEEZE
Whether it is your skid steer, telehandler, or forklift we likely already have the ability to attach to it. We have the technology to make it happen.
Detailed Specs
Shipping Dimensions
107” L x 74” W x 29” H
Working Dimensions
101” L x 67.5-103.5” W x 29” H
Approximate Weight
1,060 lbs.
Group Size
72-90” W x 101-108” L
Maximum Lifting Capacity
4,000 lbs.
Bale Packs
F12, F15, E15 and E18
