F15 Bale
Accumulator System
Looking for Kuhns MFG?
We’ve rebranded as Norden MFG! Same ownership, same great products, brand new name.
Square Bale Accumulator For 15 Bales Flat
The F15 group for 15 hay bales, flat on their strings, fills a niche in the market. The group size is virtually the same as the more popular E18 but it requires slightly less loader capacity and still fits into van trailers. We recommend the F15 system for hay producers that make between 20,000 and 50,000 bales per year.
The f15 Accumulator System
- Bales arranged flat with their string side down, 5 bales wide/3 bales long
- Handles bales from 32” to 40” in length
- 15-bale grouping is well-suited to fill van trailers from the rear or a 24’ wagon
- The bale group dimensions are 90” wide by 96” to 120” long
Straight Chute
The straight chute allows each bale to stay flat on its strings, while the baler provides the force needed to push the bales to the top of the chute. Loosening the chamber pressure makes up the difference.
Stainless Steel Deck
The stainless steel deck provides a better surface for the bales to slide in higher dirt and moisture conditions.
Gravity-Driven Gates and Final Bale Trip
As gravity moves the bales downward, the last bale in each row swings a gate to open the next row. The last bale in the grab opens the back gate.
Automatic Rear Gate
The last bale in the grab opens the back gate. As the accumulator unloads itself, springs automatically return all the gates back to their starting position, and the rear gate snaps back shut, ready for the next bale.
Cornering Guide Belt
Sharp turns are no problem as the guide belt keeps bales properly aligned and moving up the chute.
Bale Configuration
5 Bales Wide and 3 Bales Long
Group Dimensions
90” Wide by 96” to 120” Long
Approximate Weight
2,740 lbs.
Working Height
11 ft. 5 in.
Working Length
21 ft. 9 in.
Working Width
9 ft. 4 in.
Bale Handlers
FOR THE F15 ACCUMULATOR SYSTEM

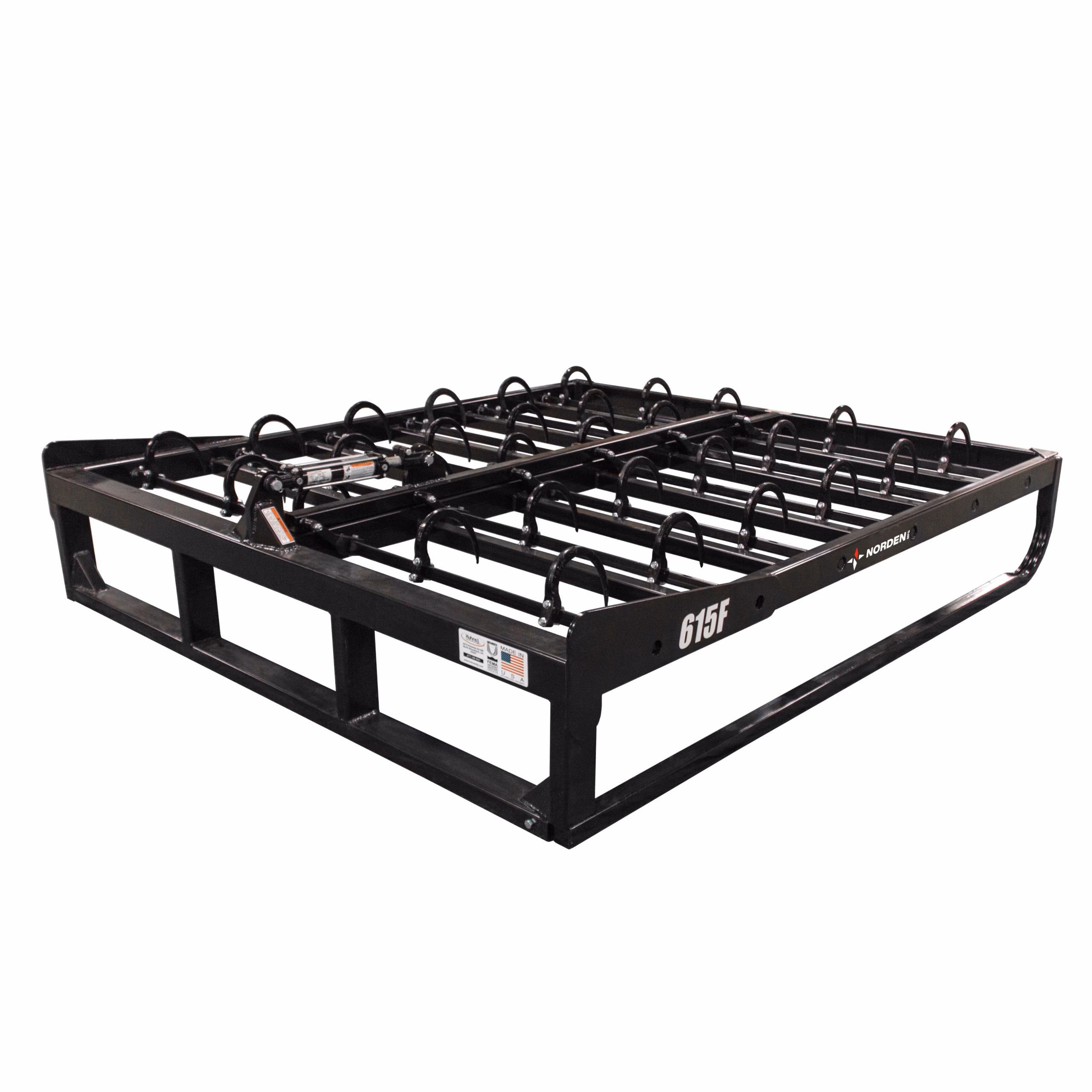

615F Grabber
- For moving and grabbing 15-bale bundles.
- Bale configuration ideal for filling van trailers from the rear and for 24’ wagons.
- Requires a loader with at least 2,100lb lift capacity and one set of remotes.
Cast steel bale hooks
Once the group is tight, a single hydraulic cylinder rotates all the hooks simultaneously into the top of the bales to pick up the group. These durable hooks allow for 2 hooks per bale to ensure the bundle is secure while transporting bundles.
Detailed Specs
Bale Configuration
5 Bales Wide and 3 Bales Long
Bundle Dimensions
90” Wide by 96” to 108” Long
Required Loader Capacity
2,100 lbs.
Working Height
1 ft. 1 in.
Working Length
7 ft. 11 in.
Working Width
7 ft. 3.5 in.
Approximate Weight
815 lbs.

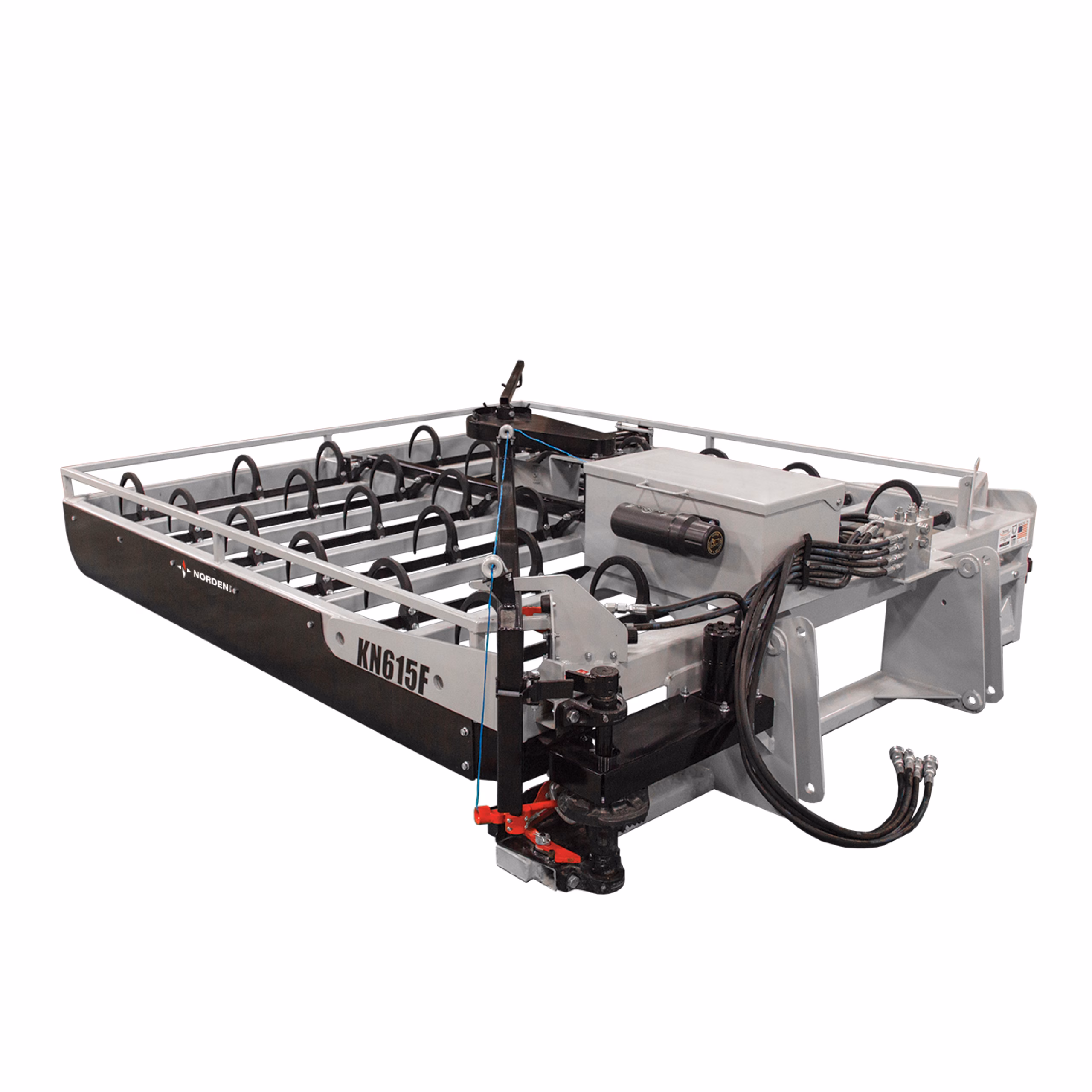

KN615F Tie-Grabber
- The KN615F Tie-Grabber picks up and ties bales that are arranged by the AF15 bale accumulator. Five wide, three long, flat on strings.
- Bundle arrangement ideal for filling van trailers from the rear and for filling 24’ wagons.
- Requires a loader with at least 2,500lb lift capacity, see details for hydraulic requirements
Knotter
This highly reliable Rasspe Knotter allows for a consistent tying method.
Squeeze Arm
Once the machine is aligned with the bale bundle, the Squeeze Arm applies pressure and squeezes the bales tightly together to form a strong and compact bundle. This arm is important for creating a bundle that is easy to stack, move, and load.
Loader Mount
This customizable option allows you the flexibility to move between multiple loader hookups.
Twine Arm
When hydraulically engaged, the twine arm wraps twine around the bundle of bales to hold the bundle together.
Multiple Hose Options
This machine allows you to choose two hydraulic hoses with a wire control in the cab, or a four hydraulic hose option. This customizable feature allows you to choose the best option for your operation.
Detailed Specs
Bale Configuration
5 Bales Wide and 3 Bales Long
Bundle Dimensions
90” Wide by 96” to 108” Long
Required Loader Capacity
2,500 lbs.
Working Height
2 ft. 6 in.
Working Length
7 ft. 11 in.
Working Width
7 ft. 3.5 in.
Approximate Weight
1,515 lbs.

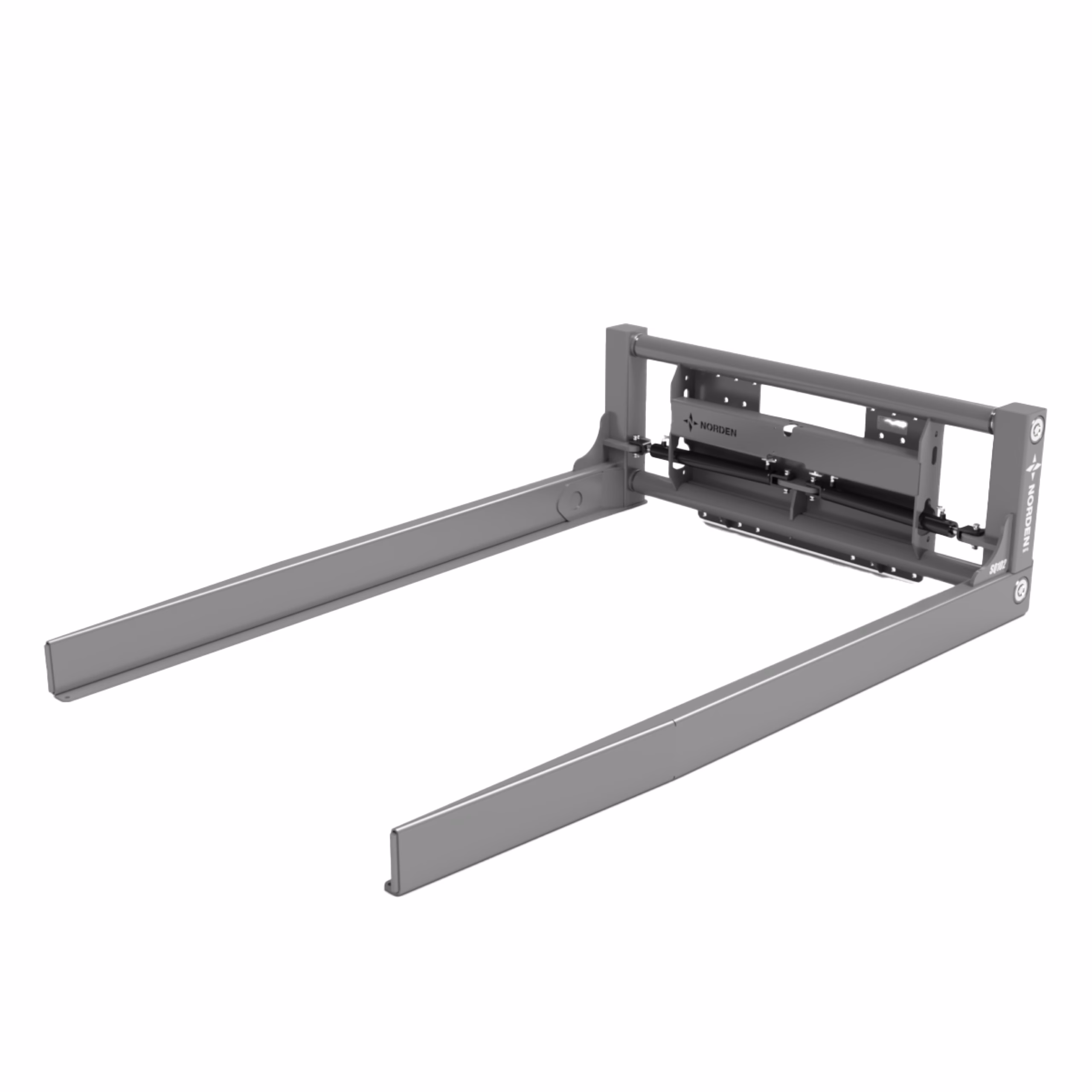

Sq102 Bale Squeeze
- Picks up tied bundles that are 4, 5, or 6 bales wide and 3 bales long.
- Inside length of 101 inches.
- For maximum efficiency, it is recommended to pick up as many bales as the loader can safely handle.
- Has a maximum lifting capacity of 4000 pounds.
- Weighs 1,060 pounds without the loader bracket.
- Works with E18, E15, F15, and F12 bale packs.
STRONG WHERE NEEDED
Designed and built with precision, this squeeze maximizes lifting capacity while providing the necessary strength. Developed in collaboration with the experts at Clerf, upgrade your operation and experience effortless bale handling today.
MOVE MANY BALES IN A SHORT ORDER
Moving multiple tied layers of bales in a single move will save you the maximum amount of time. Capable of handling up to 4,000 lbs., this squeeze allows you to move up to eighty, 50 lb. bales at once, streamlining your operations and increasing productivity. The only question is if your loader can take it.
YOUR LOADER, YOUR BALE SQUEEZE
Whether it is your skid steer, telehandler, or forklift we likely already have the ability to attach to it. We have the technology to make it happen.
Detailed Specs
Shipping Dimensions
107” L x 74” W x 29” H
Working Dimensions
101” L x 67.5-103.5” W x 29” H
Approximate Weight
1,060 lbs.
Group Size
72-90” W x 101-108” L
Maximum Lifting Capacity
4,000 lbs.
Bale Packs
F12, F15, E15 and E18
