F8 Bale
Accumulator System
Looking for Kuhns MFG?
We’ve rebranded as Norden MFG! Same ownership, same great products, brand new name.
Square Bale Accumulator System For 8 Bales Flat
The F8 hay bale accumulator system from Norden is a no-frills and efficient option for many farmers. Whether it is upgrading from a different accumulator that uses hydraulics to needing to fit a small loader, this system provides a solution to small acreage operators. We recommend this system for operations that produce between 5,000 and 12,000 bales per year.
The F8 Accumulator System
Straight Chute
The straight chute allowed each bale to stay flat on its strings, while the baler provides the force needed to push the bales to the top of the chute.
Stainless Steel Deck
The stainless steel deck provides a better surface for the bales to slide in higher dirt and moisture conditions.
Gravity-Driven Gates and Final Bale Lever
As gravity moves the bales downward, the last bale in each row swings a gate to open the next row. The last bale in the grab opens the back gate.
Automatic Lift Gate
The last bale in the grab opens the back gate. As the accumulator unloads itself, springs automatically return all the gates back to their starting position, and the rear gate snaps back shut, ready for the next bale.
CORNERING GUIDE BELT
Sharp turns are no problem as the guide belt keeps bales properly aligned and moving up the chute.
Bale Configuration
4 Bales Wide and 2 Bales Long
Group Dimensions
72” Wide by 64” to 80” Long
Approximate Weight
2,010 lbs.
Working Height
9 ft. 2 in.
Working Length
17 ft. 0 in.
Working Width
7 ft. 10 in.
Bale Handlers
For the F8 Accumulator System

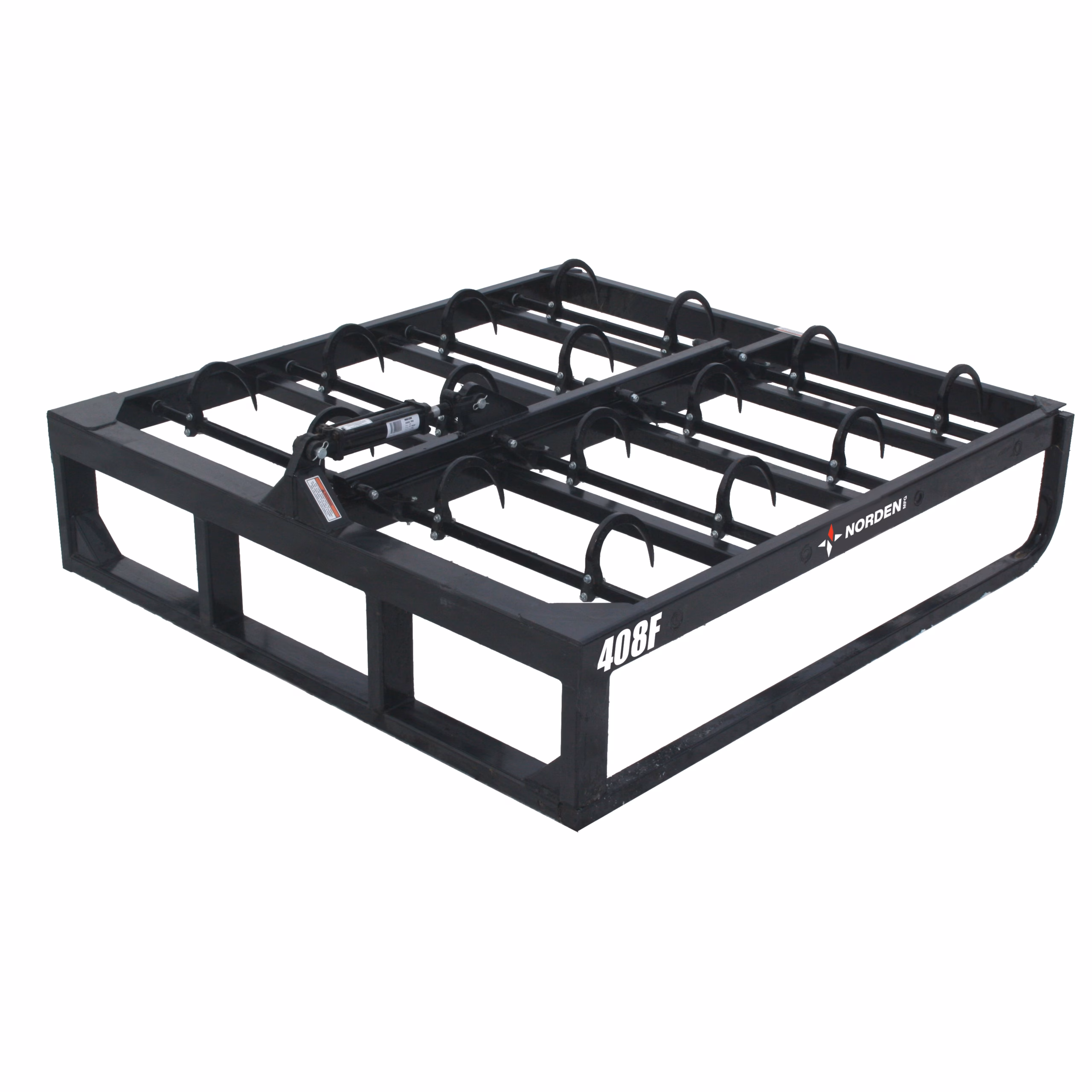

408F Grabber
- For moving and grabbing 8-bale bundles
- Bale groups can be picked up from the tied end or untied end, enabling cross-stacking
- Two-bale length allows for narrower wagons or for grabbing longer bales than models that arrange for a 3-bale length
- Requires a loader with at least 1,400lb lift capacity and one set of remotes
Cast steel bale hooks
Once the group is tight, a single hydraulic cylinder rotates all the hooks simultaneously into the top of the bales to pick up the group. These durable hooks allow for 2 hooks per bale to ensure the bundle is secure while transporting bundles.
Detailed Specs
Bale Configuration
4 Bales Wide and 2 Bales Long
Group Dimensions
72” Wide by 64” to 72” Long
Required Loader Capacity
1,400 lbs.
Working Height
1 ft. 1 in.
Working Length
6 ft. 0 in.
Working Width
6 ft. 0 in.
Approximate Weight
580 lbs.

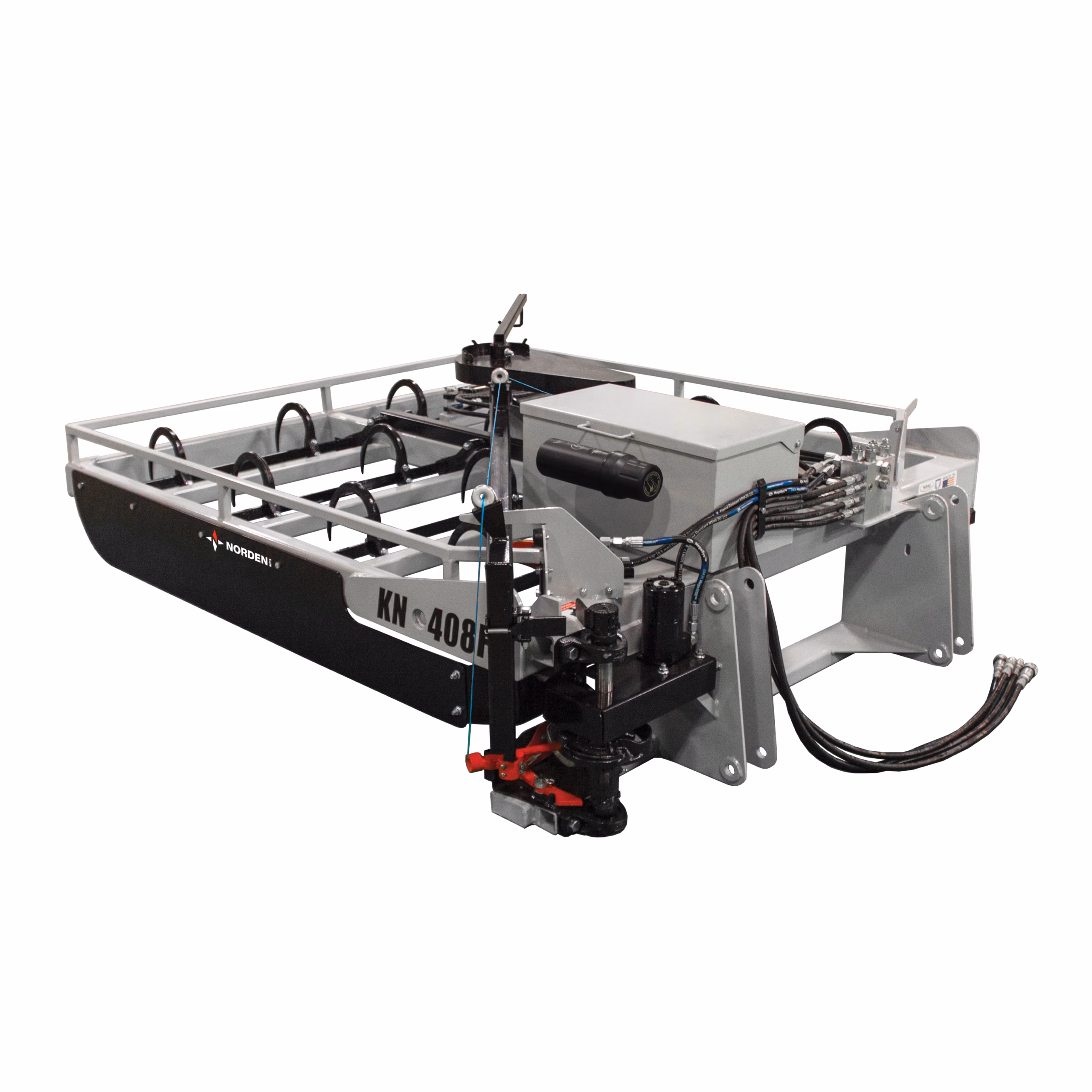

KN408F Tie-Grabber
- The KN408F Tie-Grabber picks up and ties bales that are arranged by the AF8 bale accumulator. Two long, four wide, flat, on strings.
- A lower weight requirement for this Tie-Grabber allows for the use of a smaller loader, and the bundle can be picked up from any of its sides.
- The square dimensions of this arrangement allow for cross-stacking, and the 2-bale length allows for narrower wagons or for longer bales.
- Requires a loader with at least 1,700lb lift capacity, see details for hydraulic requirements
Knotter
This highly reliable Rasspe Knotter allows for a consistent tying method.
Squeeze Arm
Once the machine is aligned with the bale bundle, the Squeeze Arm applies pressure and squeezes the bales tightly together to form a strong and compact bundle. This arm is important for creating a bundle that is easy to stack, move, and load.
Loader Mount
This customizable option allows you the flexibility to move between multiple loader hookups.
Twine Arm
When hydraulically engaged, the twine arm wraps twine around the bundle of bales to hold the bundle together.
Multiple Hose Options
This machine allows you to choose two hydraulic hoses with a wire control in the cab, or a four hydraulic hose option. This customizable feature allows you to choose the best option for your operation.
Detailed Specs
Bale Configuration
4 Bales Wide and 2 Bales Long
Group Dimensions
72” Wide by 64” to 72” Long
Required Loader Capacity
1,700 lbs.
Working Height
2 ft. 6 in.
Working Length
6 ft. 0 in.
Working Width
6 ft. 0 in.
Approximate Weight
1,280 lbs.

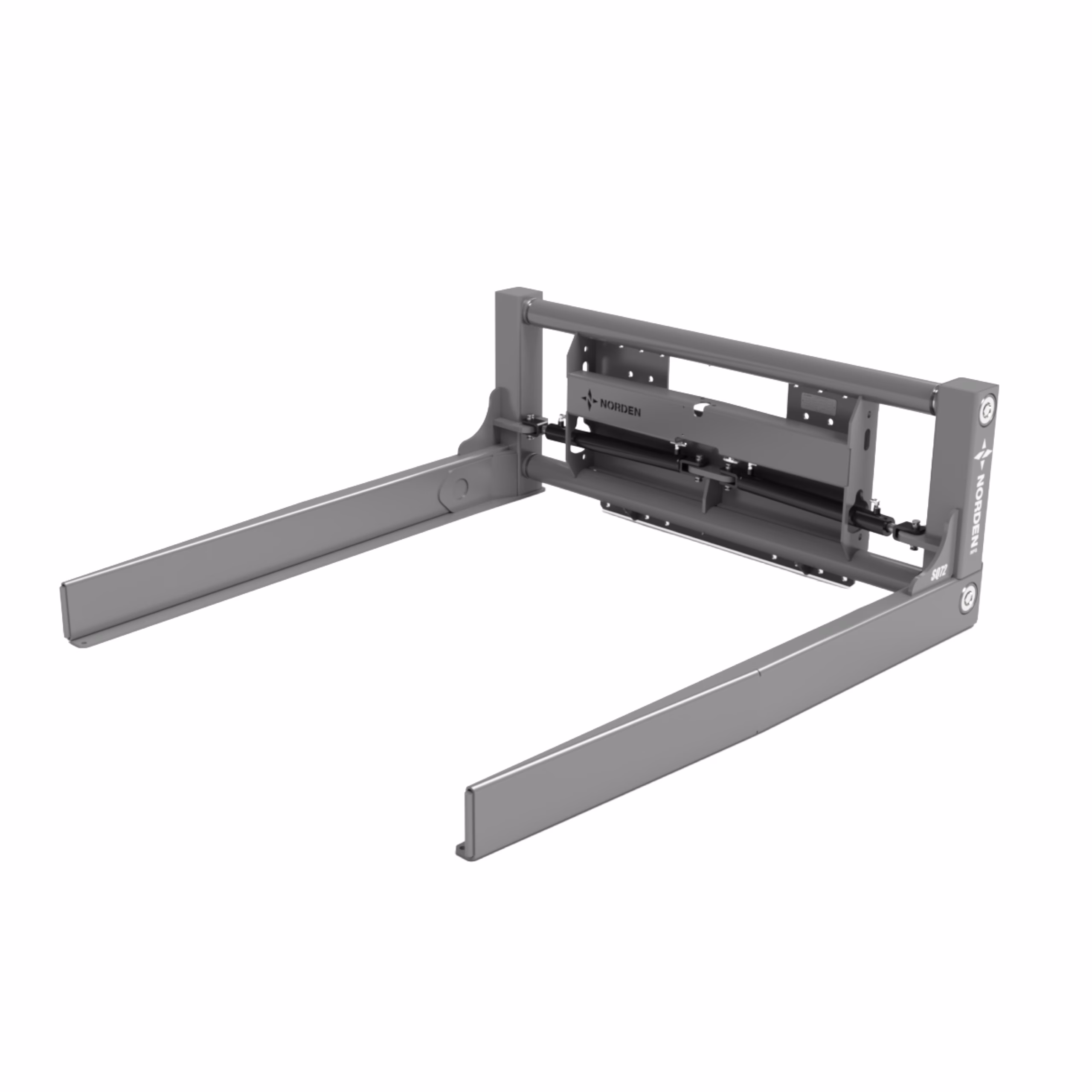

Sq72 Square Bale Squeeze
- Picks up tied bundles that are 4, 5, or 6 bales wide and 2 bales long.
- Inside length of 71 inches.
- For maximum efficiency, it is recommended to pick up as many bales as the loader can safely handle.
- Has a maximum lifting capacity of 4000 pounds.
- Weighs 950 pounds without the loader bracket.
- Works with E10 and F8 bale packs.
strong Where Needed
Designed and built with precision, this squeeze maximizes lifting capacity while providing the necessary strength. Developed in collaboration with the experts at Clerf, upgrade your operation and experience effortless bale handling today.
MOVE MANY BALES IN A SHORT ORDER
Moving multiple tied layers of bales in a single move will save you the maximum amount of time. Capable of handling up to 4,000 lbs., this squeeze allows you to move up to eighty, 50 lb. bales at once, streamlining your operations and increasing productivity. The only question is if your loader can take it.
YOUR LOADER, YOUR square BALE SQUEEZE
Whether it is your skid steer, telehandler, or forklift we likely already have the ability to attach to it. We have the technology to make it happen.
Detailed Specs
Shipping Dimensions
77” L x 74” W x 29” H
Working Dimensions
71” L x 67.5-103.5” W x 29” H
Approximate Weight
950 lbs.
Group Size
72-90” W x 71-78” L
Maximum Lifting Capacity
4,000 lbs.
Bale Packs
E10 and F8
