Sq102W
Bale Squeeze
Looking for Kuhns MFG?
We’ve rebranded as Norden MFG! Same ownership, same great products, brand new name.
Sq102W Bale Squeeze
- Picks up tied bundles that are 5 or 6 bales wide and 3 bales long.
- Inside length of 102 inches or three bales long.
- For maximum efficiency, it is recommended to pick up as many bales as the loader can safely handle.
- Has a maximum lifting capacity of 4,000 lbs.
- Weighs 1,233 lbs. without the loader bracket.
- Works with F15 and E18 bale packs.
STRONG WHERE NEEDED
Designed and built with precision, this squeeze maximizes lifting capacity while providing the necessary strength. Developed in collaboration with the experts at Clerf, upgrade your operation and experience effortless bale handling today.
MOVE MANY BALES IN A SHORT ORDER

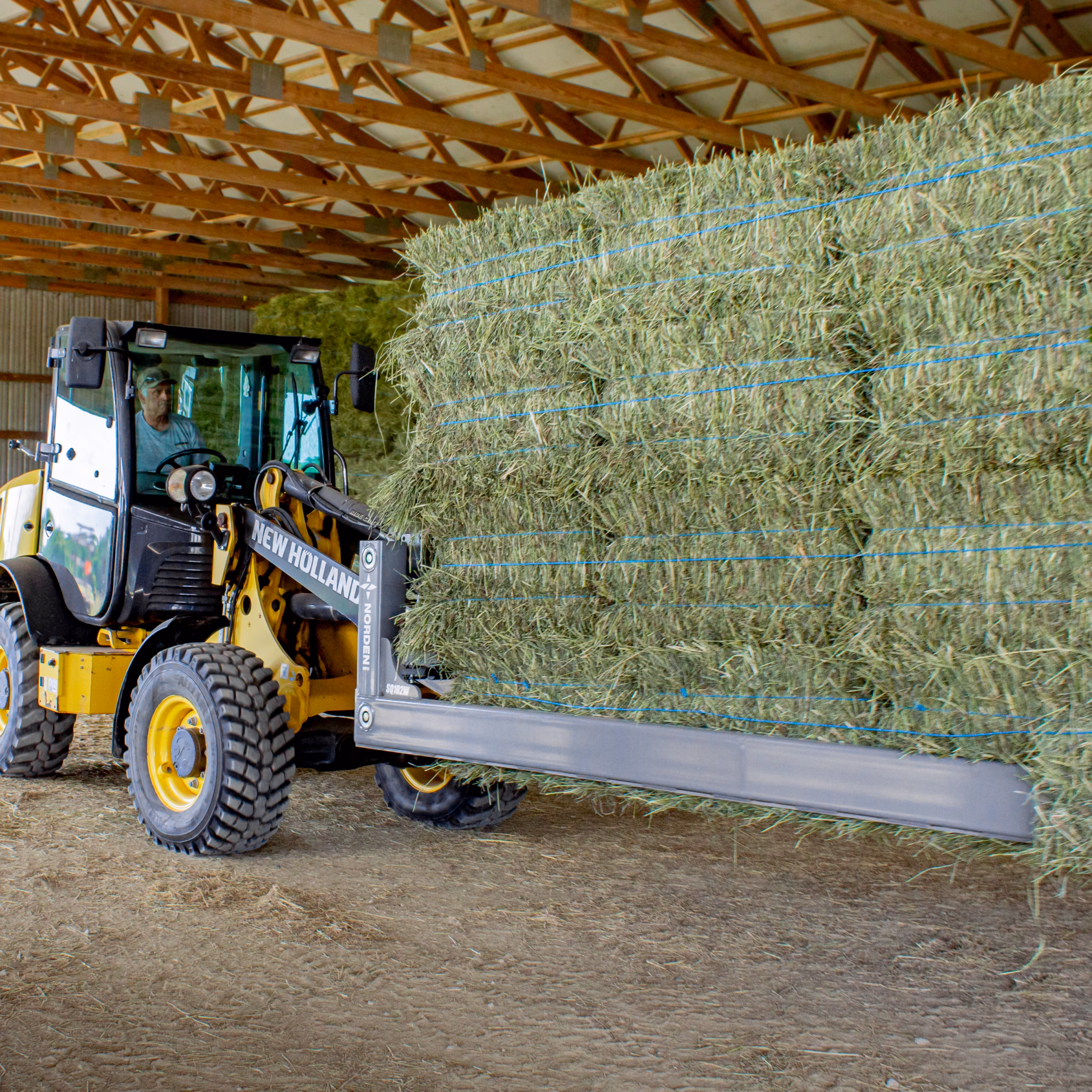

Moving multiple tied layers of bales in a single move will save you the maximum amount of time. Capable of handling up to 4,000 lbs., this squeeze allows you to move up to eighty, 50 lb. bales at once, streamlining your operations and increasing productivity. The only question is if your loader can take it.
YOUR LOADER, YOUR BALE SQUEEZE
Whether it is your skid steer, telehandler, or forklift we likely already have the ability to attach to it. We have the technology to make it happen.
Detailed Specs
Shipping Dimensions
107” L x 88” W x 29” H
Working Dimensions
101” L x 81.5-117.5” W x 29” H
Approximate Weight
1,233 lbs.
Group Size
90″ W x 101-108″ L
Maximum Lifting Capacity
4000 lbs
Bale Packs
F15 and E18
